Hardware Visible to the Driver

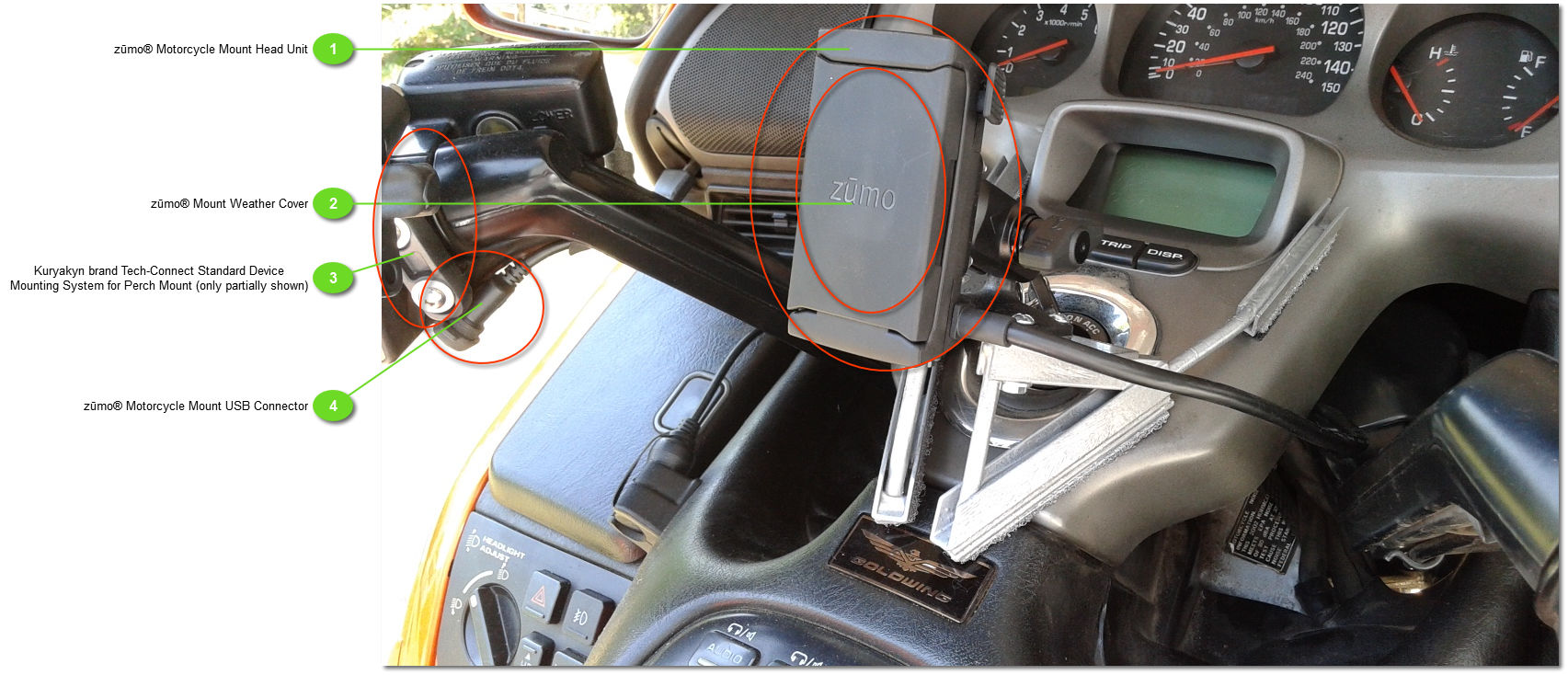

Hardware Visible to the Driver


1

zūmo® Motorcycle Mount Head Unit

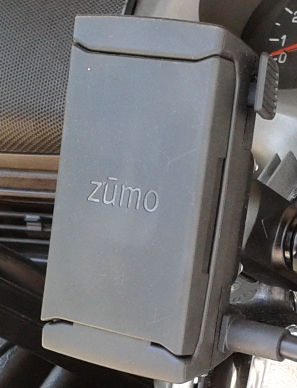

1. zūmo® Motorcycle Mount Head Unit

This is the GPS side of the fully-featured zūmo® Motorcycle Mount, shown with the zūmo® Mount Weather Cover installed.

2

zūmo® Mount Weather Cover

2. zūmo® Mount Weather Cover

This is a separate part which simply snaps into the zūmo® Motorcycle Mount as if it were the GPS, in order to protect the gold-plated contacts from the elements.

3

Kuryakyn brand Tech-Connect Standard Device

Mounting System for Perch Mount (only partially shown)

3. Kuryakyn brand Tech-Connect Standard Device Mounting System for Perch Mount (only partially shown)

This is what I mount my cell phone on (plugged into the USB cable both for power and for potential Spotify and Pandora interaction with GPS, for playing music).

4

zūmo® Motorcycle Mount USB Connector

4. zūmo® Motorcycle Mount USB Connector

This USB connector cable is part of the zūmo® Motorcycle Mount.  This cable branches out from the cable that comes out of the zūmo® Motorcycle Mount Head Unit, and is routed neatly underneath the GL1800's top shelter, and secured safely alongside the left handlebar wiring harness.



The following is the list of mounting hardware that comes in the zūmo® 595LM GPS box:


Motorcycle Mounting Hardware:


A note about the Handlebar Mount Kit:  it appears to be a re-branded version of the following parts from RAM® Mounts:


Car/Truck Mounting Hardware (Not Shown Above):
